Cleaning up the white areas along the edges in a SolidWorks model

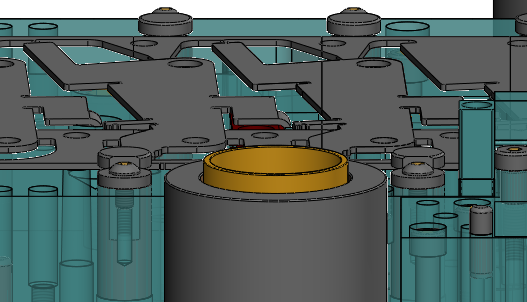

As you can see in the before and after pics below, the top picture has annoying looking white areas on some edges of the model. Here is the simple setting change to clean this up:
Go to SolidWorks System Options, Display/Selection, Anti-aliasing, and change the default “Anti-alias edges/sketches only” to “Full scene anti-aliasing”.
