Intelligent Catalog Component Library

LogoPress Intelligent Catalog Component Library includes more than 100 different standard catalog component types provided by nearly 50 different manufacturers in an even combination of both inch and metric components.

To summarize, inserting a component with this function simultaneously does the following:

• Configures the correct component length and gives a graphical preview
• Shows the center of force as you add and position coil springs or nitrogen springs
• Creates all related holes in the corresponding stacks of plates at part level
• Creates the catalog component (or pattern of components) and mates them
• Optionally colors holes and allows easy customization of hole sizes
• Applies customizable and assignable notes and tolerances as hole table attributes
• Automatically and instantly populates the Bill of Materials (BOM) with quantity, manufacturer, the manufacturer’s part number (and/or your own part number), etc.

▶

Basic Fasteners

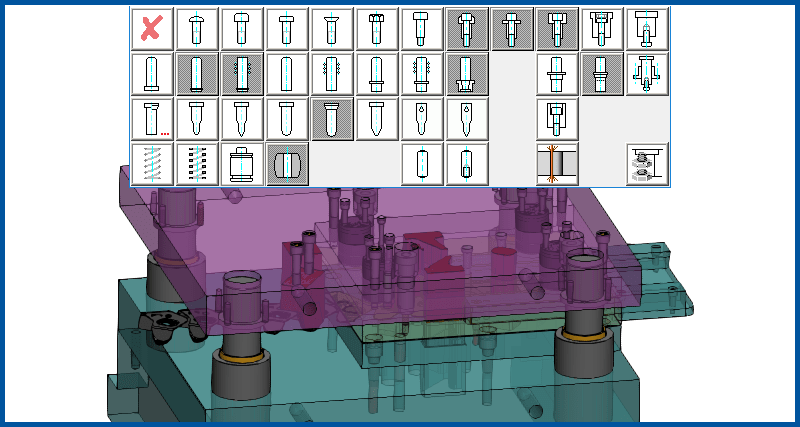

(0:43) Insert components and their corresponding holes through the entire stack of plates simultaneously. Never mismatch or misalign a hole again! Play Video

▶

Quickly modify already inserted components

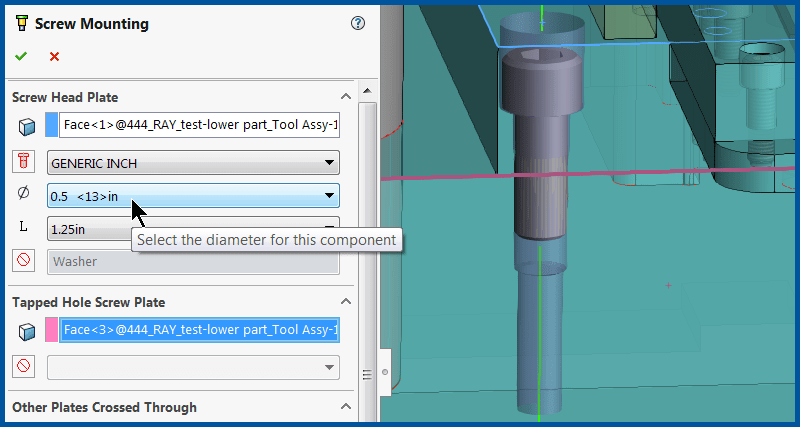

(0:46) Edit the size (diameter) & counterbore depth of an already mounted screw. The length automatically adjusts itself to maintain correct thread engagement. Play Video

▶

Punches and Pilots - with Ball Lock retainer and/or die buttons

(1:56) Insert catalog punches and pilots, including cutting clearances, land and taper. Automatically adds part numbers and custom properties. Add buttons, caps, and retainers as needed. Play Video

▶

Springs and Nitrogen Cylinders

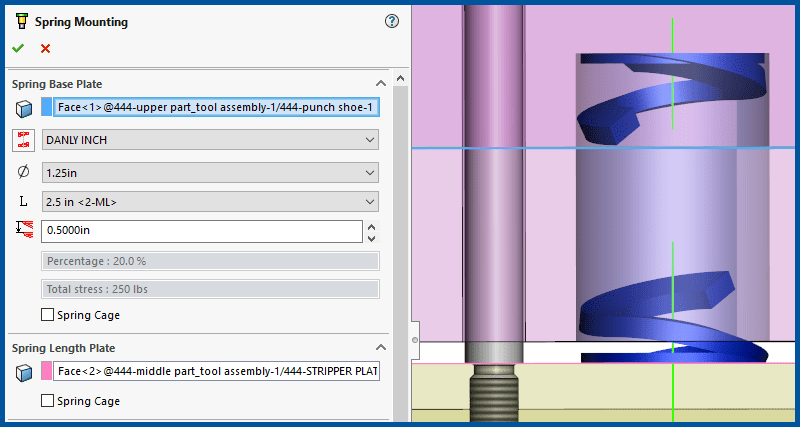

(1:24) Add flat or round wire springs and nitrogen cylinders. Force is automatically calculated, and center of force is marked. Play Video

▶

Guide Posts, Bushings, and Cages

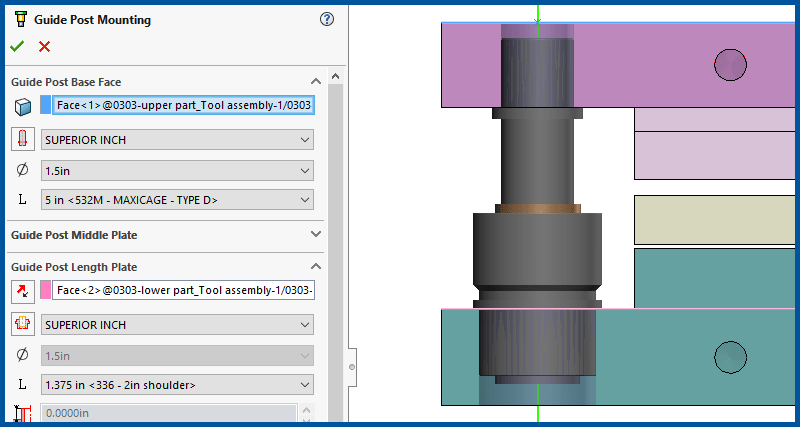

(1:22) Add a variety of guide posts with their corresponding bushings (and ball cages). Includes radial tapped retention holes for demountable units. Play Video

Video Coming Soon!

Custom Components

(MM:SS) Quickly insert user created components including holes and mates by creating a sketch axis and text file. Limitless possibilities.

We are so confident in the power of this Intelligent Catalog Component Library, that we will give you a limited selection of components to use forever for FREE!

Try Now

Try 123GO for FREE!

Leverage the power of LogoPress Intelligent Catalog component Library on any SOLIDWORKS installation with the free 123GO. Includes 8 basic fasteners including SHCS, Shoulder bolts, and dowel pins. Learn More

LogoPress Catalog Component Library contains over 200,000 unique part numbers, and will insert each item with the correct hole types and sizes through the entire stack of plates.

Items Included:

1. Socket Head Cap Screws
2. Flat Head Cap Screws
3. Low Head Cap Screws
4. Button Head Cap Screws
5. Set Screws
6. Hex Head Bolts
7. Socket Head Screw Caps (Unified Screw Caps for springs)
8. Nuts (Standard, Jam, Self Locking...)
9. Washers (Thin, Tooth, Split, Hi-Collar...)
10. Dowel Pins
11. Dowel Pins with Tapped Hole (Pull-Dowels)
12. Socket Head Shoulder Bolts
13. Spool Pad Retainers
14. Spool Pad Retainers- Reverse Style
15. Guided Keepers
16. Guide Retainer Sets
17. Rectangular Wire Springs
18. Round Wire Springs
19. Free Length Springs
20. Spring Cans/Cages
21. Nitrogen Gas Springs
22. Ball Lock Pierce Punches
23. Ball Lock Pilots
24. Ball Lock Retainer
25. Shanked Pierce Punches (Various styles)
26. Conical Head Punches (Various styles)
27. Die Buttons/Matrix Straight (Stepped Relief & Conical Relief)
28. Die Buttons/Matrix with Shoulder (Stepped Relief & Conical Relief)
29. Die Buttons/Matrix Blank (Various styles)
30. Ejector Pins
31. Precise Cylindrical Punch Guide Bushings
32. Shoulder Punch Guide Bushings
33. Shanked Pilot (Parabolic Nose and Conical Nose)
34. Straight Pilot (Parabolic Nose and Conical Nose)
35. Stubby Pilots
36. Cylindrical Head Conical Nose Pilot
37. Ball Bearing Press Fit Guide Posts
38. Ball Bearing Demountable Guide Posts
39. Ball Bearing Demountable Bushings
40. Ball Bearing Sleeve Bushings
41. Ball Bearing Cages
42. Press Fit Guide Posts
43. Demountable Guide Posts
44. Headed Leader Guide Posts
45. Stripper Guide Posts
46. Solid Bronze Straight Sleeve Bushings
47. Solid Bronze Press Fit Shoulder Bushings
48. Solid Bronze Demountable Bushings
49. Bronze Plated Demountable Bushings
50. Bronze Plated Demountable Stripper Bushings
51. Bronze Plated Press Fit Stripper Bushings
52. Bronze Plated Straight Type Stripper Bushings
53. Self Lube Straight Sleeve Bushings
54. Self Lube Demountable Bushings
55. Self Lube Press Fit Shoulder Bushings
56. Steel Straight Sleeve Bushings
57. Steel Press Fit Shoulder Bushings
58. Steel Demountable Bushings
59. Straight Rod (Spacer)
60. Threaded Rod
61. Grinding Collar (Straight Hole and Flat Head Types)
62. Stop Blocks/Round Balancers/Jig Foot (with screw)

Suppliers Available:

1. Agathon
2. Amcor
3. A-Tooling
4. AW Precision
5. Berger
6. Bimex
7. Bordingon
8. Dadco
9. Danly
10. Dayton
11. DME
12. Eberhard
13. Enomax
14. Fibro
15. Generic
16. Greendale
17. Hasco
18. Hyson
19. Impax
20. Intercom
21. Jones Spring
22. Kaller
23. Lamina
24. Lee Spring
25. Lemco
26. Lesjofors
27. MDL
28. Metrol
29. Meusburger
30. Misumi
31. Moeller
32. NVG
33. Olma
34. Precision Punch
35. PSA-Mabec
36. Punch Industry
37. Rabourdin
38. Raymond Die Springs
39. Special Springs
40. Standard Lifters
41. Standfast
42. Steinel
43. Strack
44. Superior
45. Supratec
46. Tipco
47. Unified
