LogoPress—with over 30 years of die design software development and feedback from customers—builds upon SOLIDWORKS, adding all the necessary tools and options that die designers need to help automate the die design, debug and build processes. LogoPress DieDesign software provides a mature and systematic workflow for tool design—with a special focus on die design—while adding consistency between designs and designers. LogoPress makes die design in SOLIDWORKS economical, fast and efficient—while at the same time practically eliminating mechanical debugging.
LogoPress DieDesign is an all-inclusive, turn-key package for all aspects of standard die design. There are only two other products that can be added to this powerful package. PBC (included with DieDesign PREMIUM) adds several partial unforming tools for generating the complex intermediate forms of double curved automotive style parts. ProgSim can be added to either of these packages (DieDesign or DieDesign PREMIUM) to provide sheet metal forming simulation capabilities to prove that your design will work when steel is finally cut. Everything on this page is included as part of the DieDesign package.
Intelligent Catalog Components
Insert everything from screws to nitrogen, including the correct part number, mounting hardware, and clearnaces in just a few clicks. Over 200,000 individual components to choose from. Never misalign a hole again. Learn More
StripLayout
The StripLayout module can be used for both progressive dies and for trasnfer dies. It allows quick modeling of a true 3D strip in a very easy and logical way. Learn More
Flatten
Unbend parts incrementally to generate the stages of forming. Includes one-step Finite Element Analysis to quickly asses formability of parts. Learn More
Nest
Developed to optimize material usage in a strip layout, this tool can also be leveraged for nesting parts in a sheet, such as for a laser, or punches into a block for WEDM. Learn More
DIE DEBUGGER™
Put the tool into motion, and check for interferences dynamically as the press cycles and coil feeds. Catch design flaws early in the process! Watch Now
Beyond the systematic workflow, LogoPress povides a number of tools to optimize SOLIDWORKS for die designers. These items are included exclusively with the LogoPress DieDesign software packages. This functionality may not be as groundbreaking as some of the above tools, but are the little details that take the product from 'good' to 'great'. After all, this is software for die designers, created by die designers.
See it in action:
Improved 2D Drawings

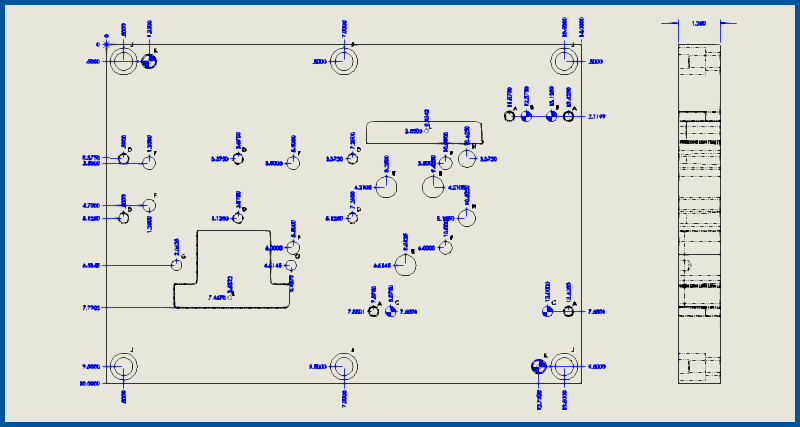

(47:55) SOLIDWORKS drawings are significantly enhanced with Die Design specific hole tables, Bill of Materials (with many auto-ballooning options), automated smart-ordinate dimensions, and more! Play Now
Tool Structure
(1:00) Tool Structure is the interface where the plates and assemblies of the die are assembled. Some of the tools included are: insert/delete plates, manage custom properties of plates (populating the BOM), manage mates, change plate dimensions and user defined project name (job number) automatically added to file names. Play Now
Filters

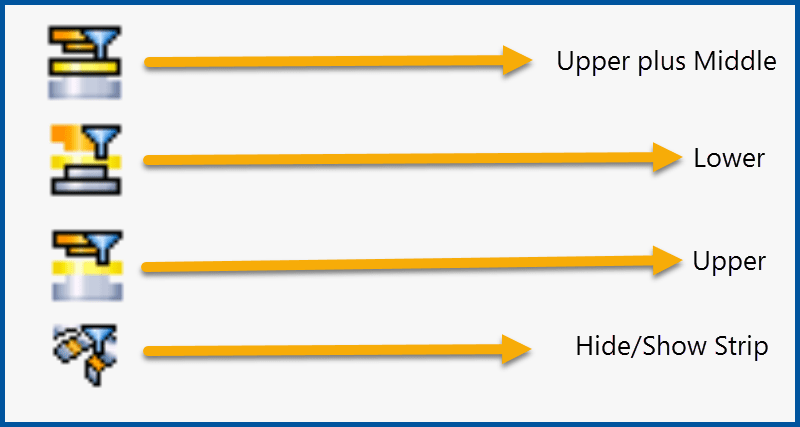

(0:37) Easily display any combination of the upper/middle/lower sub-assemblies by clicking on one of the LogoPress filter icons. Toggle the strip assembly between hidden or shown with a single click. Play Video

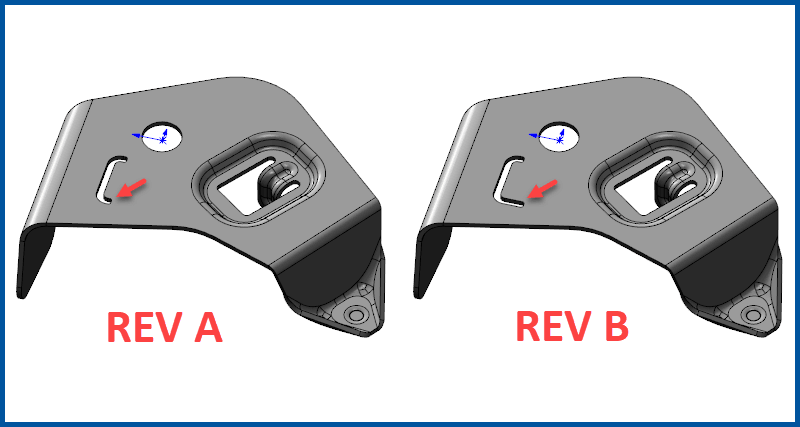

Save As... With New Project Name
“Save as with new project name” is used to create a new and completely independent copy of a tool assembly (including all parts and drawings), allowing the user to create a completely new and independent die design from the first in what is oftentimes a small fraction of the time it took to design the first one.
Punch Mounting

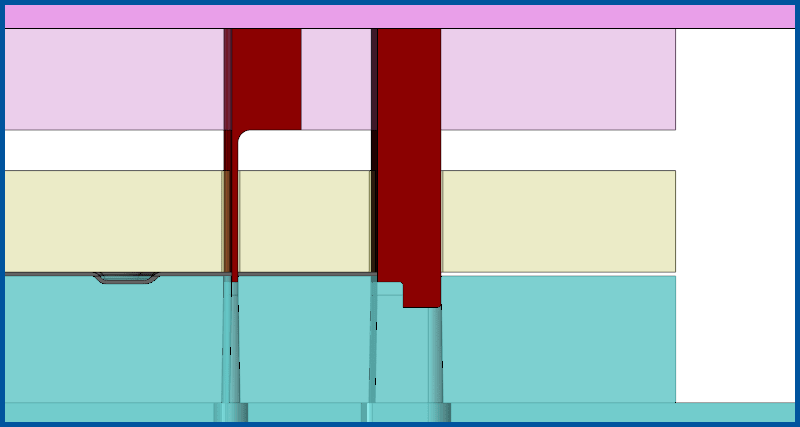

(1:13) Punch mounting “mounts” the punches that are in the strip assembly into the upper tool assembly and automatically creates the openings with clearances in the appropriate plates. The mounted punch and the related plate openings can be easily and quickly deleted by selecting it and clicking the “delete” option. Play Video
Die Inserts

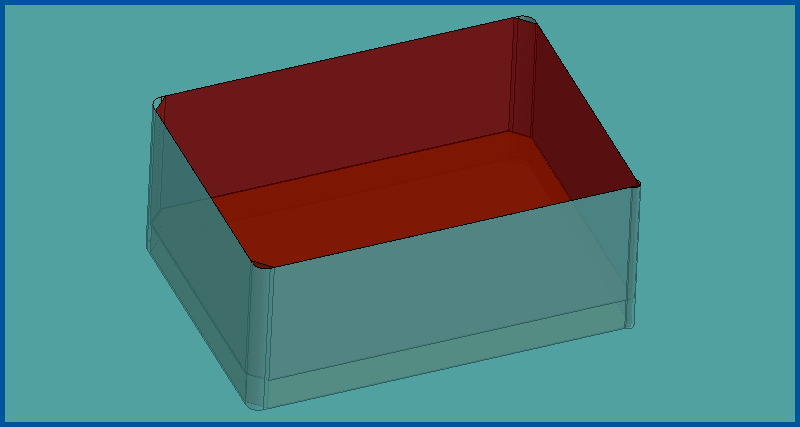

(1:41) LogoPress Add An Insert will quickly create and add an insert into a tool assembly, along with the opening in the plate. A shim under the insert is also optional. The opening can go all the way through the plate or a pocket at a desired depth can be created. Two modes are available, Part Mode (created from scratch) and Split Mode (split from existing geometry). Play Now
Punch Locking Tabs

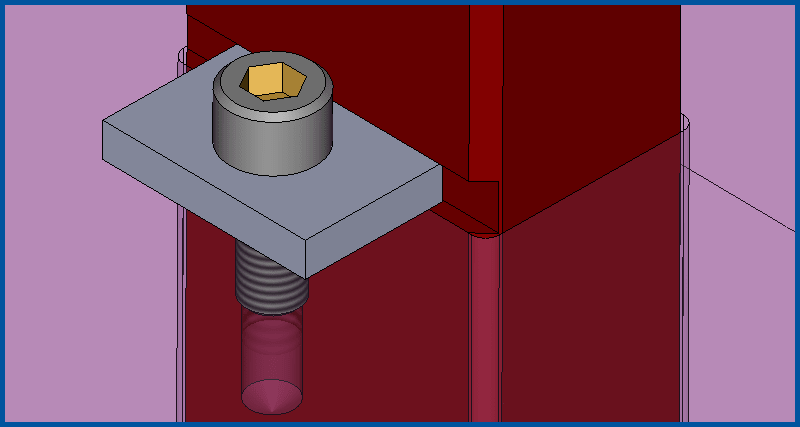

(1:28) Various sized and shaped locking tabs can be automatically created along with simultaneously adding the groove in the punch as well as the screw and the tapped hole. Play Video
Wire EDM Start Holes

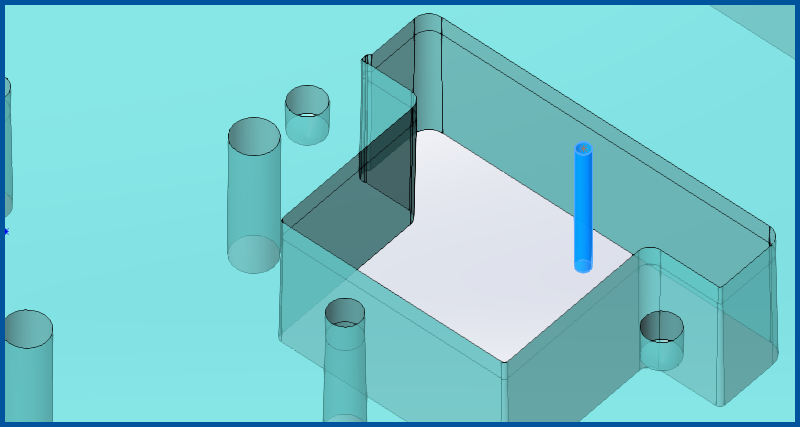

(1:04) Start holes can be created through a stack of several plates all at once or through a single plate. LogoPress Hole Tables recognize wire EDM start holes and call them out as such. Five different types of wire EDM start holes can be created depending on your CAM system requirements. Play Video
