LogoPress Design Manager
LogoPress Design Manager (123GO) is for those companies that need to work with a LogoPress die design in SOLIDWORKS, but don’t have a LogoPress product installed on their computer. It is a FREE SOLIDWORKS Certified Gold add-in that will cause SOLIDWORKS to automatically recognize and properly rebuild LogoPress-specific features, while also providing significant bonus functionality as well.
Design Manager Overview
(15:00) See LogoPress Design Manager in action - review and manipulate a LogoPress design with this free tool. Play Video
When rebuilding a die design created with LogoPress die design software, there will be one or more of eight LogoPress specific features in that file that SOLIDWORKS will not know how to rebuild unless a LogoPress product is installed on that computer. (Note: rebuilds happen automatically when opening an older SOLIDWORKS file in a newer SOLIDWORKS version.) When SOLIDWORKS tries to rebuild the die, it will put a red “warning” next to each of these features. This will cause additional significant errors to show up in the tree and the strip layout will not be complete (it will have missing/blank areas). By installing LogoPress Design Manager (123GO) SOLIDWORKS will automatically recognize and properly rebuild these features. It also provides significant bonus functionality to those without LogoPress die design software if they choose to turn it on as an add-in and license it.
Using LogoPress Design Manager (123GO) will keep your designs from blowing up!
Attention die designers using LogoPress: DO NOT send your LogoPress die designs to your customers unless they have the FREE SOLIDWORKS Certified Gold LogoPress Design Manager (123GO) (or another LogoPress product) installed on their computer.
Attention all others without LogoPress: IF YOU RECEIVE A DIE DESIGN CREATED USING LOGOPRESS and SOLIDWORKS and you do not have a LogoPress product installed on your computer, you must download and install the FREE SOLIDWORKS Certified Gold LogoPress Design Manager (123GO).
*Below is the list of the eight LogoPress features that SOLIDWORKS cannot rebuild if LogoPress Design Manager (123GO) (or another LogoPress product) is not installed on that computer:
NOTE: These features are doing things that SOLIDWORKS is unable do.
- The LogoPress Station Mark and the body files that are created when a Station Mark is inserted
- The LogoPress Import feature in the Annex part
- The LogoPress Unbending feature
- The LogoPress Overbending feature
- The LogoPress Bending/Fold feature
- The LogoPress Offset Faces feature
- The LogoPress Extend Faces feature
- The LogoPress Cut Return feature
Click here for detailed information regarding the 3 possible options when installing LogoPress Design Manager (123GO).
Intelligent Components Included with Design Manager (123GO)

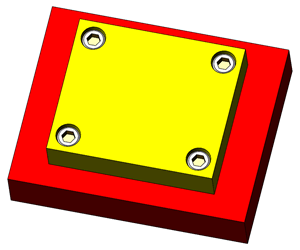

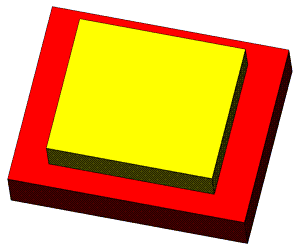

| 10 seconds to go from this: | To this: |
 |
 |
- Automatically patterned
- Fully dimensioned
- At part level
In addition to the bolts, screws, and dowels shown in the picture below, nuts, locknuts, washers and split washers are also included in Design Manager (123GO). For a larger selection of components, see the Intelligent Component Library, which is included with the LogoPress DieDesign packages.
